Aircraft Maintenance Stand

HH60 Aircraft Maintenance Stands to include a left hand and right hand stand for access to each side of the aircraft during PDM. HPS reviewed the scope of work and met with technical POC prior to the preparation of design drawings. After completion of the design stage, HPS met again with the technical POC in addition to the procurement POC to review Scope of Work and design drawings. Drawings were finalized and issued for fabrication. Modifications to the drawings were made as required and stands were released for manufacture.

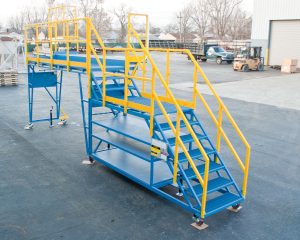

HH60 Aircraft Maintenance Stand Left View

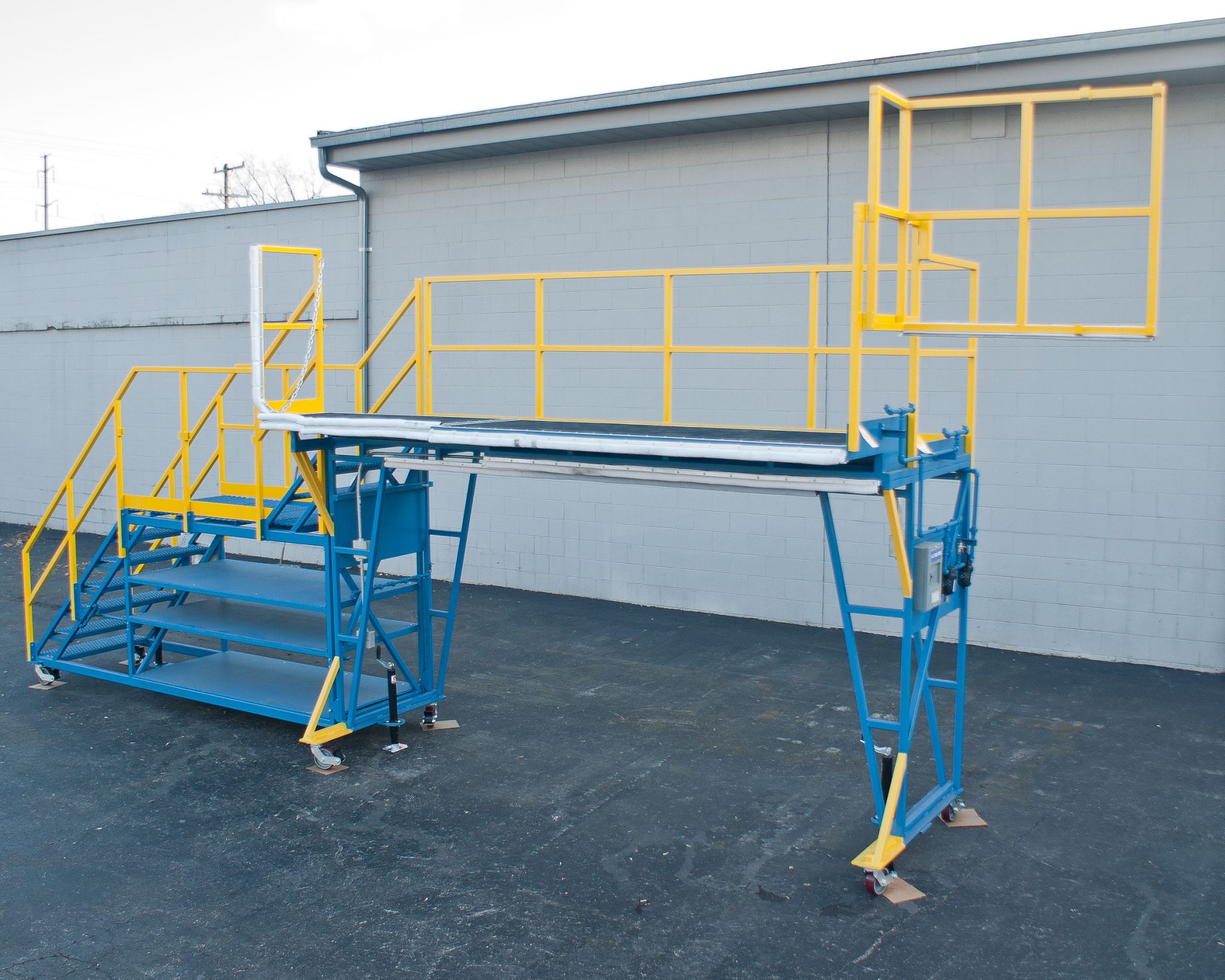

Each side stand was approximately 24 feet in length which included stair access to the upper platform level.  Below the stair on each stand, plywood shelves were provided as required by SOW for parts storage.  The stands included casters for easy movement, leveling jacks, compressed air piping header and convenience outlets, under platform lighting and convenience receptacles at ground level all prewired to a 100 amp circuit breaker panel.  The stands were constructed of steel tubing, finish painted and provided with aircraft bumpers on all exposed metal surfaces that may come in contact with the aircraft.  The upper platform also included a hinged section to allow for additional clearance at the aircraft engine.
